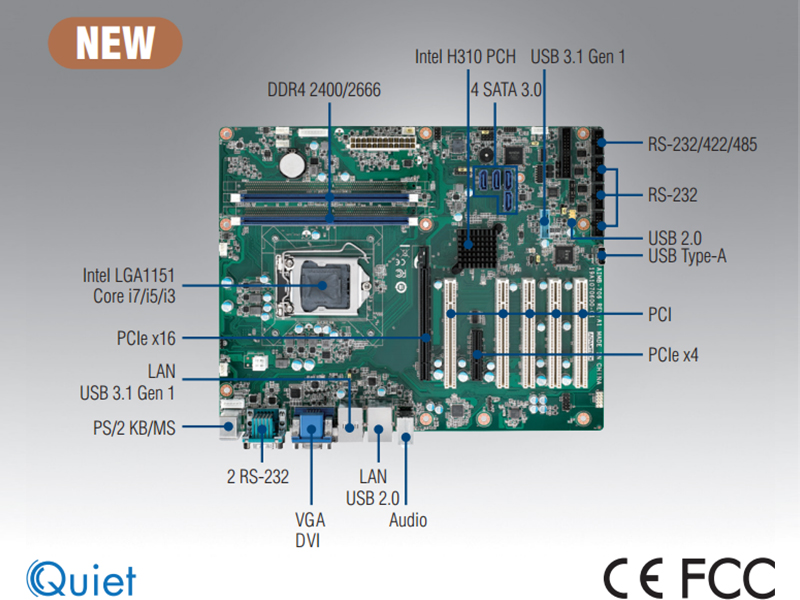

AIMB-706
LGA1151 8th/9th Generation Intel®
Core™ i7/i5/i3 & Pentium®/Celeron®
ATX with DVI/VGA, DDR4, SATA 3.0,
USB 3.1 & 6 COMs
Features
ƒ Intel® 8th/9th generation Core™ i7/i5/i3 & Pentium®/Celeron® processor
with H310 chipset
ƒ Dual channel (Non-ECC) DDR4 2400/2666 up to 64 GB
ƒ Support VGA and DVI display
ƒ SATA 3.0, USB 3.1, dual GbEs
ƒ 5 RS-232 and 1 RS-232/422/485 serial ports
ƒ 1 PCIe x16 (Gen 3) and 1 PCIe x4 (Gen 2), and 5 PCI expansion slots
Note: Intel 8th/9th generation processors only support Windows 10 (64-bit).
