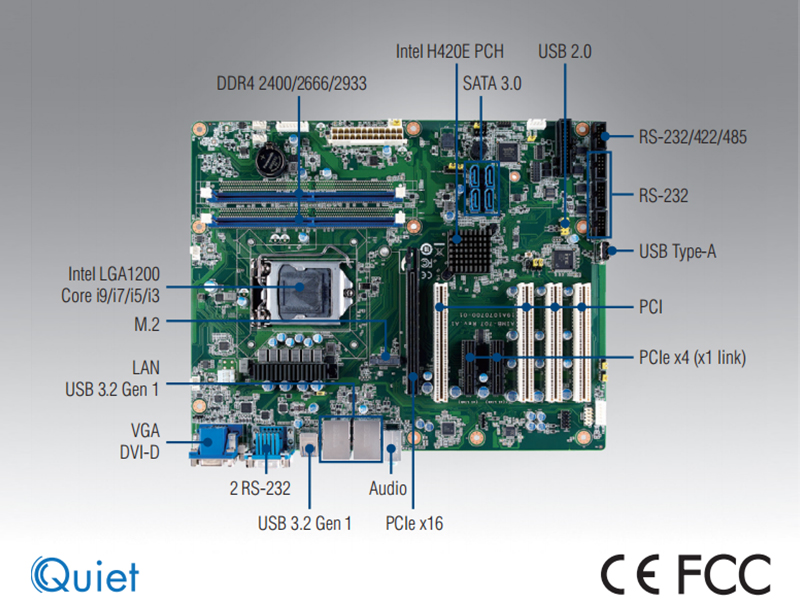

AIMB-707
LGA1200 10th Generation Intel® Core™
i9/i7/i5/i3 & Pentium®/Celeron® ATX
with DVI/VGA, DDR4, USB 3.2, M.2,
6 COMs
Features
ƒ Intel® 10th generation Core™ i9/i7/i5/i3 & Pentium®/Celeron® processor
with H420E chipset
ƒ Dual channel (Non-ECC) DDR4 2400/2666/2933 up to 64 GB
ƒ Support VGA and DVI display
ƒ M.2, SATA 3.0, USB 3.2, dual GbEs
ƒ 5 RS-232 and 1 RS-232/422/485 serial ports
ƒ 1 PCIe x16 (Gen 3) and 2 PCIe x4 (x1 Gen 3 link), and 4 PCI expansion slots
Note: Legacy platform is not supported.
